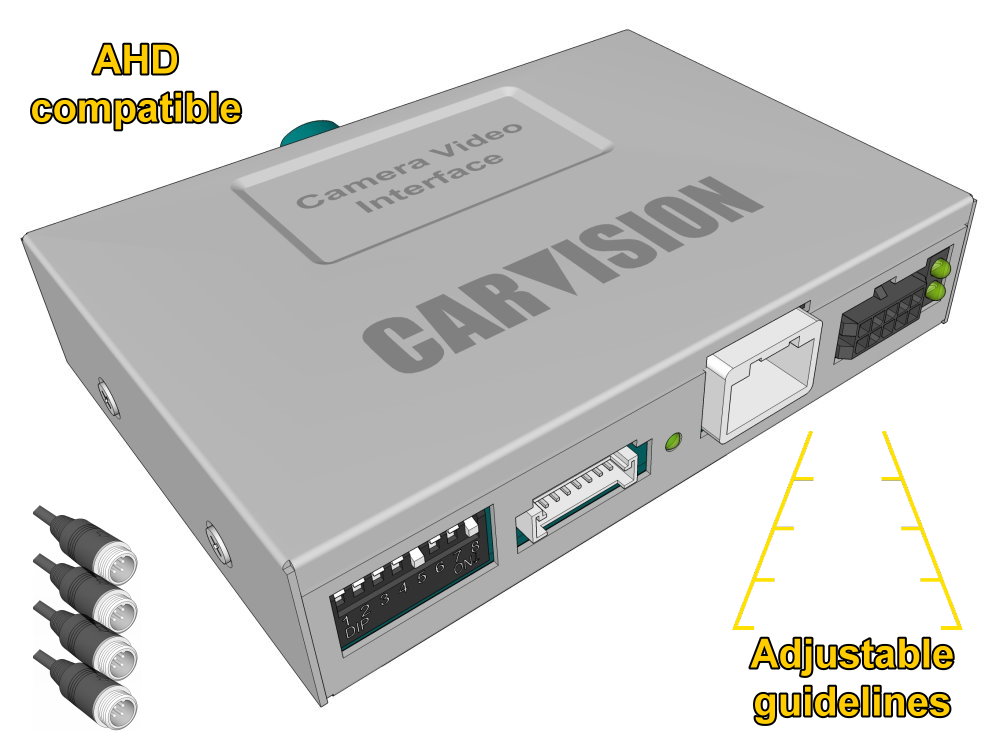

Unique: AHD / CVBS compatible + adjustable Guidelines!

Made with 4x camera connector, 4-pins asia/aviation type.

The HD Mercedes NTG 5.5 / 6 / MBUX Camera Video interface has 4 camera/video inputs and 4 trigger wires (rear, front, right , left).

The video channels can be activated automatically by trigger wires nad/or manually by using the included external switch.

The interface will automatically switch to the rearview camera when you put the gear into reverse. And if Front is active, then after reverse it will show the picture of Front camera automatically for 5, 10, 15, 20 sec. (adjustable in menu settings).

This interface supports CVBS and AHD cameras.
Compatible with: PAL/NTSC/720P/960/1080P.

THIS INTERFACE IS COMPATIBLE WITH:

Comand Online NTG6 - MBUX with 7inch monitor [HW V45 only!]:

•  A-class (W177) from 05/2018,
•  B-class (W247) from 12/2018,
•  CLA coupe (C118) from 03/2019,
•  CLA shooting B (X118) from 07/2019,
•  GLB (X247) from 09/2019,
•  GLC (X253) from 2019,

Comand Online NTG6 - MBUX with 10.25inch monitor [All versions]:

•  A-class (W177) from 05/2018,
•  B-class (W247) from 12/2018,
•  CLA coupe (C118) from 03/2019,
•  CLA shooting B (X118) from 07/2019,
•  EQC (N293) from 2019,
•  GLB (X247) from 09/2019,
•  GLC (X253) model year from 2019,
•  GLE coupe (C167) model year from 2019,
•  GLE SUV (W167) model year from 2019,
•  GLS-class (X166) model year from 2019

Comand Online NTG6 - MBUX with 7inch or 10.25inch monitor [All versions]:

•  Sprinter (W907/910) model year from 2018

•  Citan with MBUX system

•  Actros truck with 10 inch MBUX system

* NOT compatible with NTG7 (like the newest Sprinter system)
